DNP
-D25-4

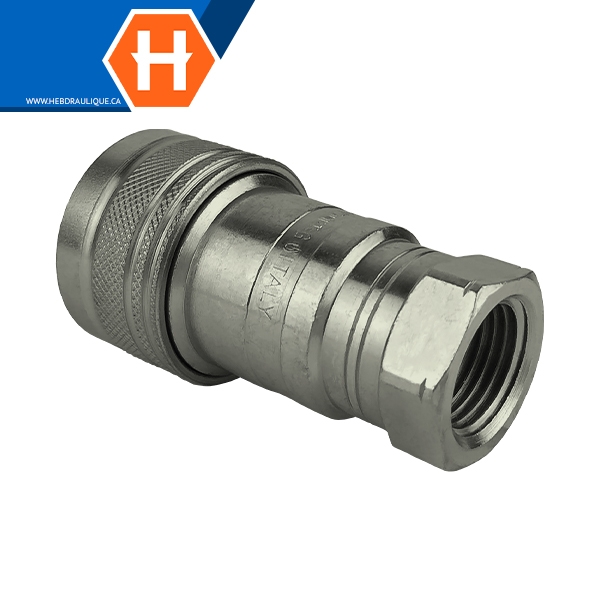

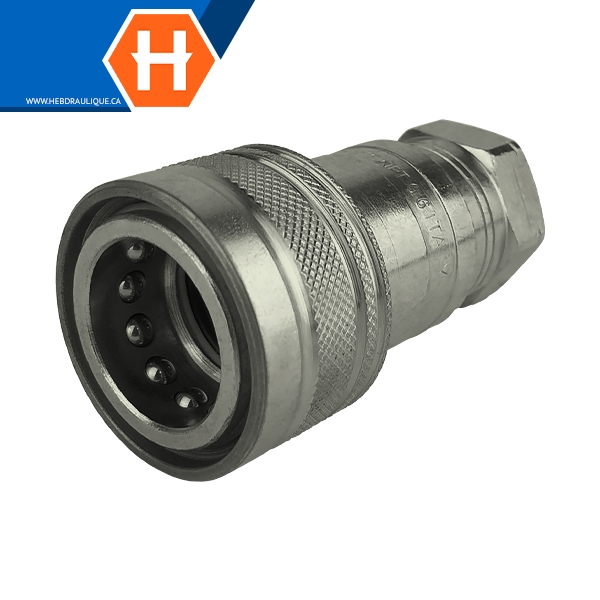

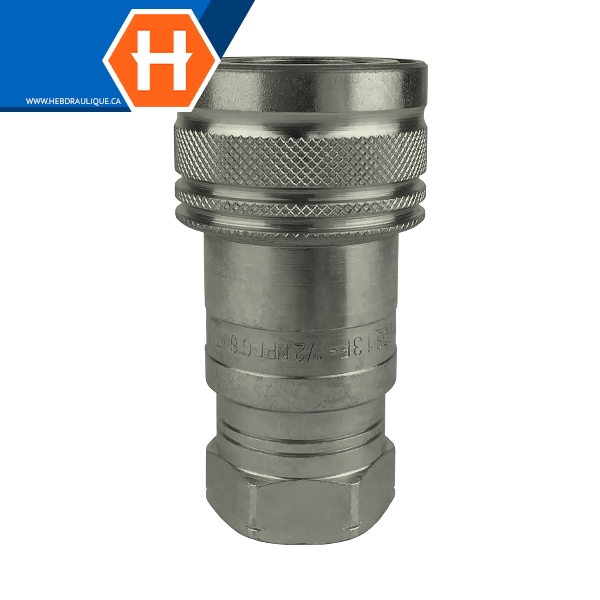

Agricultural ball type coupling (socket) fem.
DNP
- N° item :D25
* Prices are in Canadian dollars. Taxes and shipping not included.
Available for
Free in-store pickup
Buy online and pick up your order for free in store.
Home delivery
Delivery charges are calculated based on your postal code.
Item |
Coupling (socket/female)
|
Series |
DNP D25/NS(PDS1)
|
Main application |
Hydraulic
|
Other applications |
DNP’s D25/NS(PDS1) Series is used primarily on agricultural equipment, snowplows and mining equipment. It is recognized as an economical and reliable quick coupling.
|
Type |
Ball valve
|
Working pressure |
1 - 4350 psi
|
Temperature range |
-13°F to 212°F (-25°C to 100°C)
|
Material |
Carbon steel plated
|
Seal |
NBR
|
Shape |
Straight
|
Compatibility |
With SafeWay S71 male nipple.
|
Connectability |
Connection under pressure not allowed.
|
Interchangeable with |
DNP NS/PDS1, SafeWay S20, Eaton Aeroquip FD42, Faster N, Parker 4000, Stucchi IR, SnapTite 76, Stucchi IR
|
The above specifications are provided for representative purposes only and may vary depending on the supplier of the product. Please contact the nearest Hebdraulique service center to find out the quantities in stock. Some products are available on order only.
